# サーバーで帳票作成時のサムネイル画質向上設定

## **機能概要**

以下によって作成される帳票のサムネイルの画質を向上させる機能です。

**i-Repo Manager**

* 自動帳票作成(サムネイル更新がONの場合のみ)
* 帳票コピー
* シート編集(シートの1ページ目を編集した場合のみ)
* バインダーマッピング

**API**

* 自動帳票作成API(サムネイル更新がONの場合のみ)
* 帳票更新API
* 帳票コピーAPI

## **設定方法**

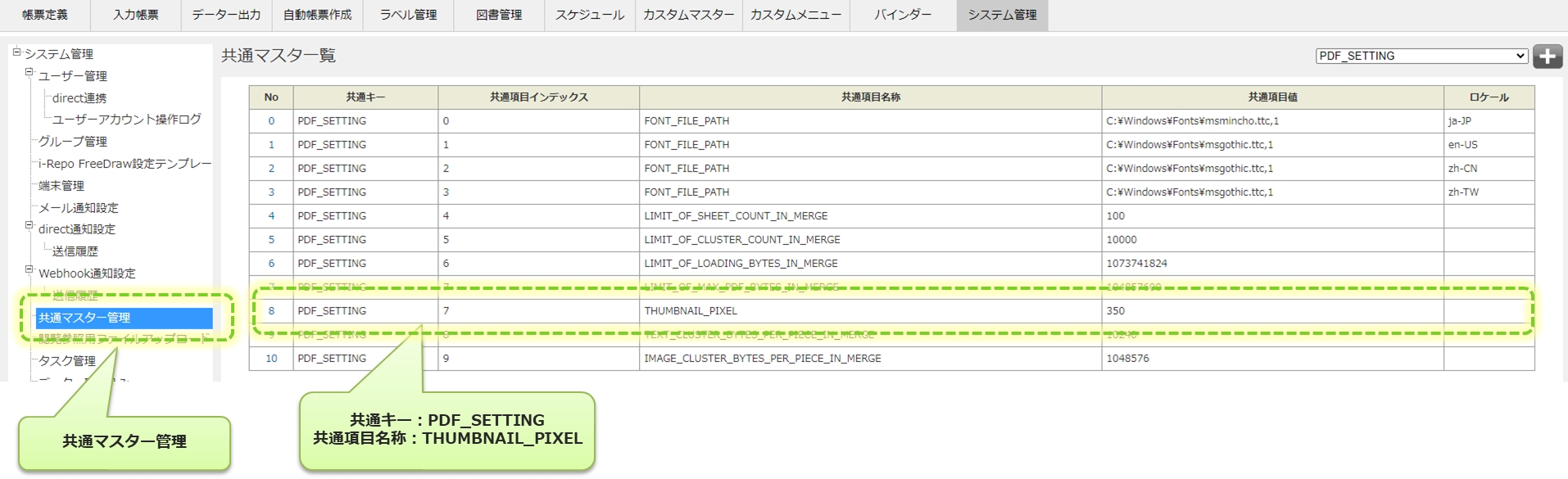

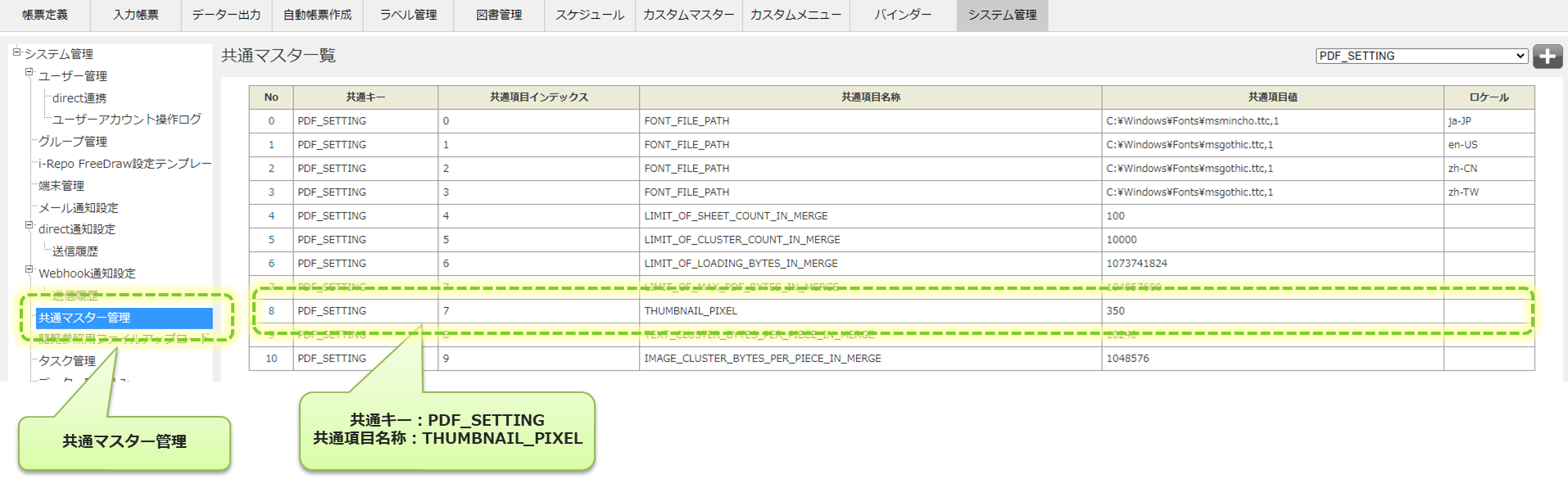

i-Repo Managerの「システム管理」 ＞ 「共通マスター管理」メニューにて設定します。

* 共通キー：　　　“PDF\_SETTING”
* 共通項目名称：　“THUMBNAIL\_PIXEL”
* 共通項目値：　　サムネイルの長辺のピクセル値を指定

<div align="left"><figure><img src="/files/wQQOByP14WlFU30AZnQS" alt=""><figcaption></figcaption></figure></div>

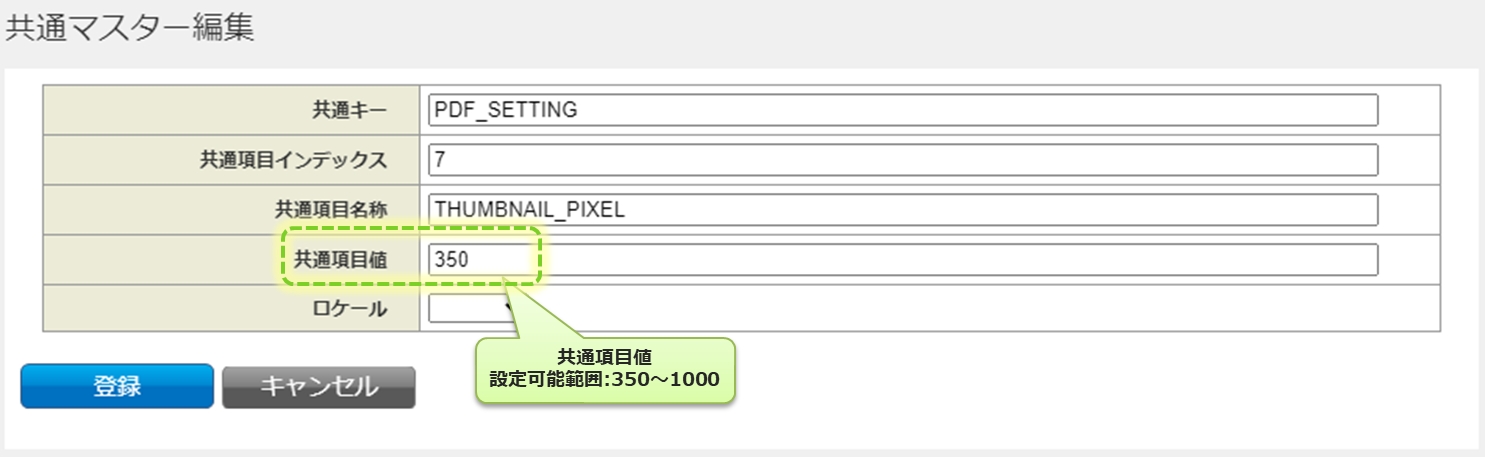

「共通項目値」にて、サムネイルの長辺のピクセル値を指定します。&#x20;

設定可能範囲：350(px) ～ 1000(px)&#x20;

範囲外の値を設定した場合350(px)となります。

<div align="left"><figure><img src="/files/E7IP7yuKGpGeaPWj9Xtc" alt=""><figcaption></figcaption></figure></div>

## **注意点**

サムネイル画像の解像度を大きくすると、帳票の容量が大きくなります。\
帳票がサムネイル画質向上の対象となるのは、設定変更後に作成された帳票です。


---
